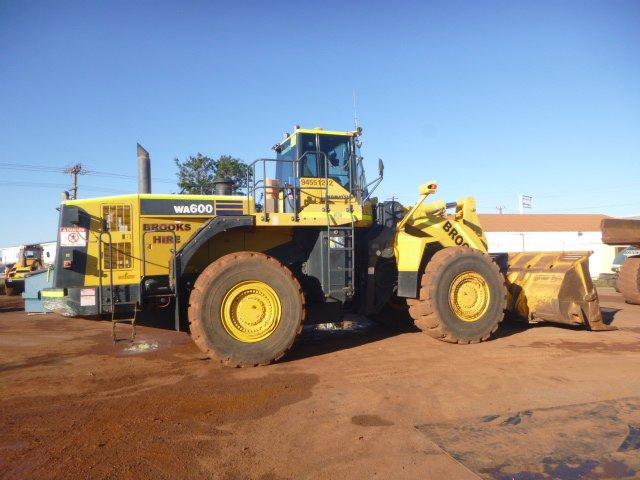

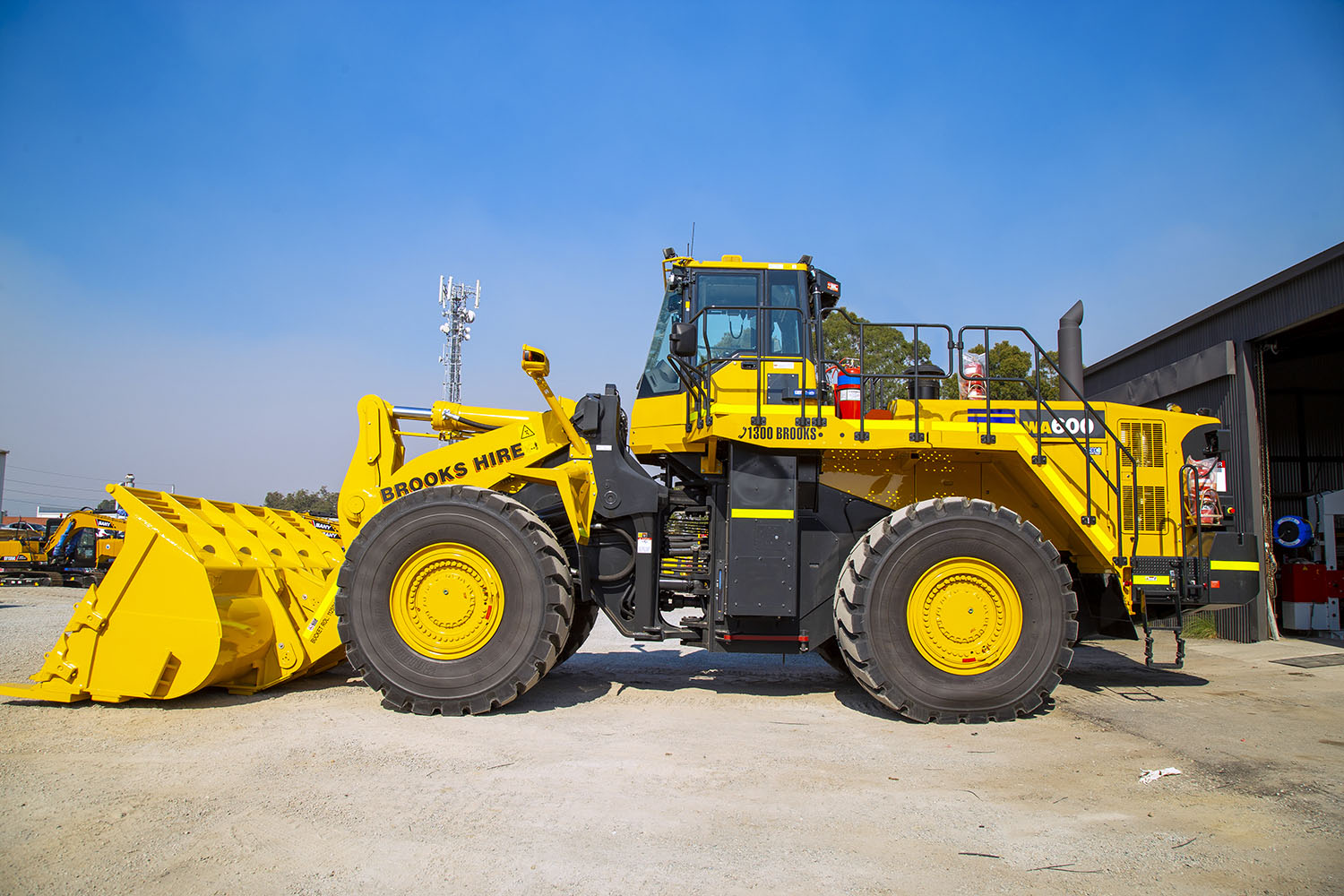

L115 - Komatsu WA600-6

With the Komatsu WA600-6, you get outstanding rim-pull and traction can be tailored to suit with a modulating clutch. The operator has an abundance of hydraulic power and will relaxed due to excellent ergonomic features such as Advanced Joystick Steering System.

Download Specification Brochure

Specifications

• Operating Weight 52700 kg
• Bucket width 3685 mm
• Standard bucket capacity – SAE 5.3 -6.4 m3
• Horsepower, Gross – SAE (kW) 396
• Horsepower, Net – ISO (kW) 393
• Horsepower, Net – SAE (kW) 374
• Rated RPM 1800
• Fan drive method Hydraulic
• Displacement (litre) 23.15
• Number of cylinders 6

Dimensions

• Tread 2650 mm
• Width over tires 3540 mm
• Wheelbase 4500 mm
• Hinge pin height at max. height 5885 mm
• Hinge pin height at carry position 720 mm
• Ground clearance 525 mm
• Hitch height 1385 mm
• Overall height top of stack 4270 mm
• Overall height ROPS cab 4460 mm
