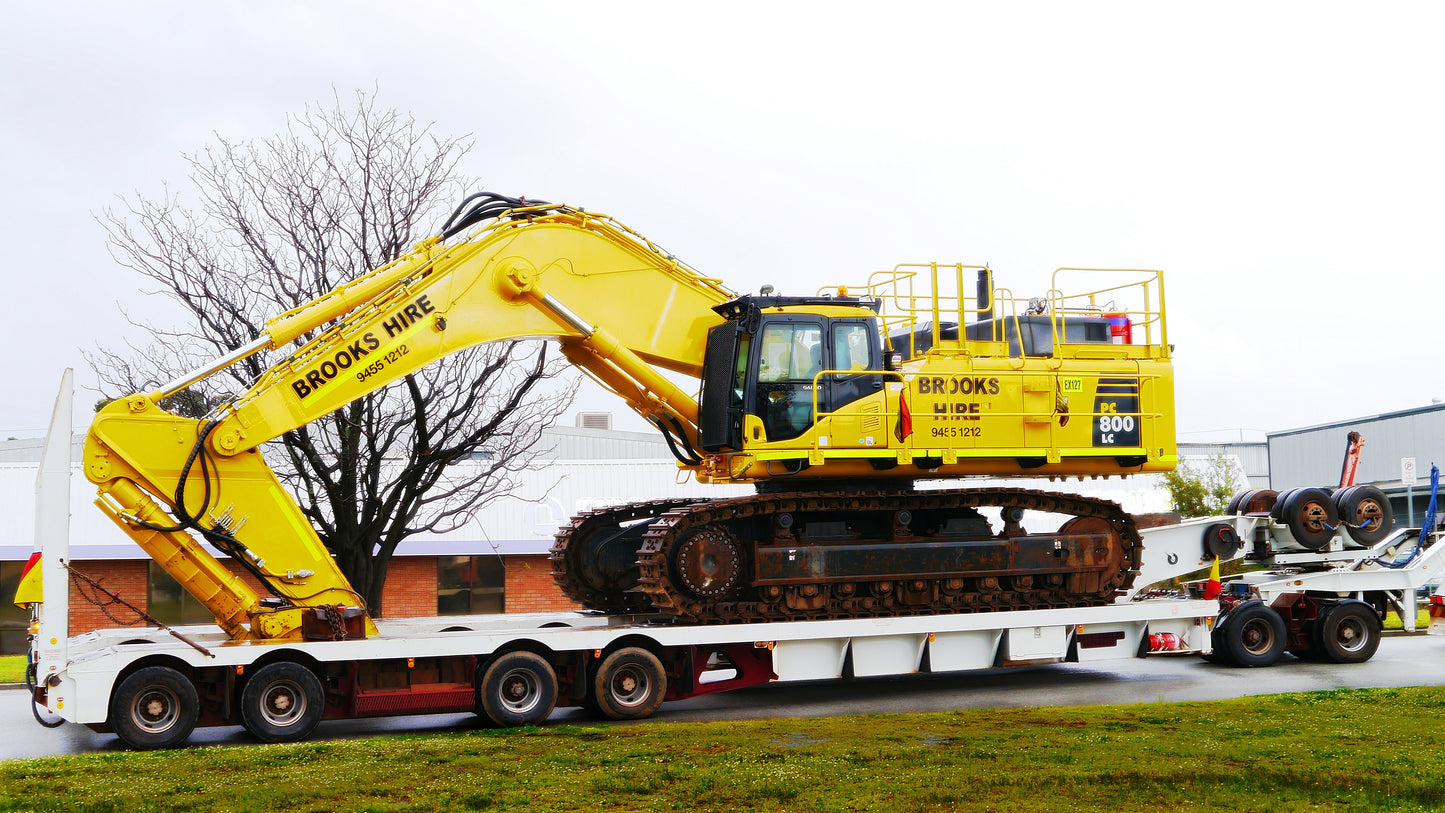

The Komatsu PC800LC Dash 8 crawler excavators set new worldwide standards for quarry & mining equipment. Operator safety and comfort is a focal point in their design, and their outstanding performance and specifications will contribute directly to the success of your business. These powerful and robust machines are designed to stand up to the hardest working conditions while still maintaining maximum productivity.
Operating Weight 81,800 KG Engine Power 370 kW / 496 HP @ 1.800 rpm Bucket Capacity (max) 6.91 m3
Dimensions A Overall width of upper structure (incl. catwalk) 4.335 mm A’ Machine cab width 3.265 mm B Overall height of cab (to top of Komtrax antenna) 3.720 mm C Tail swing radius 4.400 mm D Clearance under counterweight 1.560 mm E Machine tail height (to top of engine cover) 3.665 mm F Ground clearance 840 mm G Tumbler center distance 5.020 mm H Track length 6.327 mm J Track gauge (working position) 3.500 mm K Track shoe width 710 mm L Width of crawler 4.210 mm Width of crawler (when retracted) 3.490 mm M Overall length 13.995 mm N Overall height (to top of boom) 4.850 mm
Working Range
A Max. digging height 11955 mm B Max. dumping height 8235 mm C Max. digging depth 8445 mm D Max. vertical wall digging depth 5230 mm E Max. digging depth of cut for 2.44 m level 8310 mm F Max. digging reach 13660 mm G Max. digging reach at ground level 13400 mm H Min. swing radius 5985 mm Bucket digging force (ISO) 40500 kg Arm crowd force (ISO) 33300 kg
